first commit

README.md

@@ -0,0 +1,95 @@
+#高置信突变位点的整合
+
+> Author： Run Luyao
+>
+> E-mail：18110700050@fudan.edu.cn
+>
+> Git：
+>
+> Last Updates: 18/03/2020
+
+## 安装指南
+
+```bash
+# 激活choppy环境
+source activate choppy
+# 安装app
+choppy install renluyao/high_confidence_calls_manuscript
+```
+
+## App概述
+
+中华家系1号全基因组高置信small variants（SNVs和Indels）的整合流程。
+
+
+

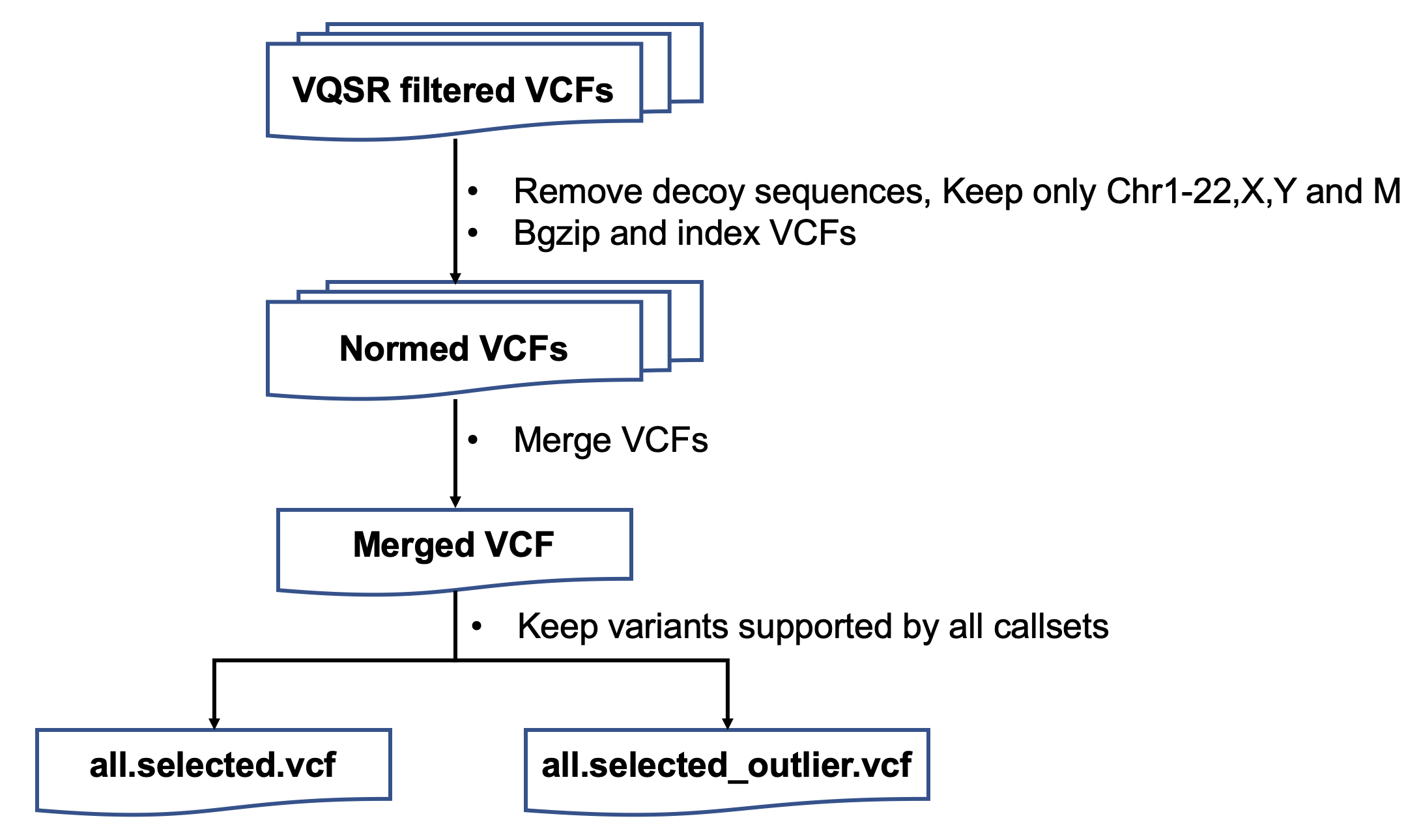

+## 流程与参数
+
+1. variantsNorm
+
+保留chr1-22，X上的突变
+
+用bcftools norm进行突变格式的统一
+
+2. mendelian
+
+LCL5、LCL7和LCL8为三口之家，进行trio-analysis，分析符合孟德尔和不符合孟德尔遗传规律的突变位点
+
+LCL6、LCL7和LCL8为三口之家，进行trio-analysis，分析符合孟德尔和不符合孟德尔遗传规律的突变位点
+
+得到LCL5和LCL6两个家系合并的vcf文件
+
+3. zipIndex
+
+对LCL5和LCL6两个家系合并的文件压缩和检索引
+
+4. VCFrename
+
+将VBT的输出结果，VCF文件中的MOTHER FATHER CHILD改成对应的样本名
+
+5. mergeSister
+
+将LCL5和LCL6修改过名字后的家系VCF文件合并
+
+6. reformVCF
+
+根据两个三口之家和姐妹的孟德尔遗传的信息，将之前和合并的VCF分解成4个人的vcf，并且包含了家系遗传的信息
+
+7. familyzipIndex
+
+将上一步输出的4个文件进行压缩和检索引
+
+8. merge
+
+将所有注释后的LCL5 vcf文件合并
+
+将所有注释后的LCL6 vcf文件合并
+
+将所有注释后的LCL7 vcf文件合并
+
+将所有注释后的LCL8 vcf文件合并
+
+9. vote
+
+投票选择高置信的突变位点
+
+t
+
+## App输入变量与输入文件
+
+
+
+## App输出文件
+
+
+
+## 结果展示与解读
+
+
+
+## CHANGELOG
+
+
+
+## FAQ
+

codescripts/bed_for_bamReadcount.py

@@ -0,0 +1,68 @@
+import sys,getopt
+import os
+import re
+import fileinput
+
+def usage():
+    print(
+        """
+Usage: python bed_for_bamReadcount.py -i input_vcf_file -o prefix
+
+This script selects SNPs and Indels supported by all callsets.
+
+Please notice that bam-readcount only takes in 1-based coordinates.
+
+Input:
+-i a vcf file
+
+Output:
+-o  a indel bed file for bam-readcount
+        """)
+
+# select supported small variants
+def process(oneLine):
+    m = re.match('^\#',oneLine)
+    if m is not None:
+        pass
+    else:
+        line = oneLine.rstrip()
+        strings = line.strip().split('\t')
+        # convert the position to bed file for bam-readcount
+        # deletion
+        if len(strings[3]) > 1 and len(strings[4]) == 1:
+            pos = int(strings[1]) + 1
+            outline = strings[0] + '\t' + str(pos) + '\t' + str(pos) + '\t' + strings[3] + '\t' + strings[4]+'\n'
+            outINDEL.write(outline)
+        # insertion
+        elif len(strings[3]) == 1 and len(strings[4]) > 1 and (',' not in strings[4]):
+            outline = strings[0] + '\t' + strings[1] + '\t' + strings[1] +  '\t' + strings[3] +  '\t' + strings[4] + '\n'
+            outINDEL.write(outline)
+        else:
+            outMNP.write(oneLine)
+
+opts,args = getopt.getopt(sys.argv[1:],"hi:o:")
+for op,value in opts:
+    if op == "-i":
+        inputFile=value
+    elif op == "-o":
+        prefix=value
+    elif op == "-h":
+        usage()
+        sys.exit()
+
+if len(sys.argv[1:]) < 3:
+    usage()
+    sys.exit()
+
+INDELname = prefix + '.bed'
+MNPname = prefix + '_MNP.txt'
+
+outINDEL = open(INDELname,'w')
+outMNP = open(MNPname,'w')
+
+for line in fileinput.input(inputFile):
+    process(line)
+
+outINDEL.close()
+outMNP.close()
+

codescripts/extract_vcf_information.py

@@ -0,0 +1,96 @@
+import sys,getopt
+import os
+import re
+import fileinput
+import pandas as pd
+
+def usage():
+	print(
+		"""
+Usage: python extract_vcf_information.py -i input_merged_vcf_file -o parsed_file
+
+This script will extract SNVs and Indels information from the vcf files and output a tab-delimited files.
+
+Input:
+-i the selected vcf file
+
+Output:
+-o tab-delimited parsed file
+		""")
+
+# select supported small variants
+def process(oneLine):
+	line = oneLine.rstrip()
+	strings = line.strip().split('\t')
+	infoParsed = parse_INFO(strings[7])
+	formatKeys = strings[8].split(':')
+	formatValues = strings[9].split(':')
+	for i in range(0,len(formatKeys) -1) :
+		if formatKeys[i] == 'AD':
+			ra = formatValues[i].split(',')
+			infoParsed['RefDP'] = ra[0]
+			infoParsed['AltDP'] = ra[1]
+			if (int(ra[1]) + int(ra[0])) != 0:
+				infoParsed['af'] = float(int(ra[1])/(int(ra[1]) + int(ra[0])))
+			else:
+				pass
+		else:
+			infoParsed[formatKeys[i]] = formatValues[i]
+	infoParsed['chromo'] = strings[0]
+	infoParsed['pos'] = strings[1]
+	infoParsed['id'] = strings[2]
+	infoParsed['ref'] = strings[3]
+	infoParsed['alt'] = strings[4]
+	infoParsed['qual'] = strings[5]
+	return infoParsed
+
+
+def parse_INFO(info):
+	strings = info.strip().split(';')
+	keys = []
+	values = []
+	for i in strings:
+		kv = i.split('=')
+		if kv[0] == 'DB':
+			keys.append('DB')
+			values.append('1')
+		elif kv[0] == 'AF':
+			pass
+		elif kv[0] == 'POSITIVE_TRAIN_SITE':
+			pass
+		elif kv[0] == 'NEGATIVE_TRAIN_SITE':
+			pass
+		else:
+			keys.append(kv[0])
+			values.append(kv[1])
+	infoDict = dict(zip(keys, values))
+	return infoDict
+
+
+opts,args = getopt.getopt(sys.argv[1:],"hi:o:")
+for op,value in opts:
+	if op == "-i":
+		inputFile=value
+	elif op == "-o":
+		outputFile=value
+	elif op == "-h":
+		usage()
+		sys.exit()
+
+if len(sys.argv[1:]) < 3:
+	usage()
+	sys.exit()
+
+allDict = []
+for line in fileinput.input(inputFile):
+	m = re.match('^\#',line)
+	if m is not None:
+		pass
+	else:
+		oneDict = process(line)
+		allDict.append(oneDict)
+
+allTable = pd.DataFrame(allDict)
+
+allTable.to_csv(outputFile,sep='\t',index=False)
+

codescripts/high_confidence_call_vote.py

@@ -0,0 +1,255 @@
+# import modules
+import sys, argparse, os
+import fileinput
+import re
+import pandas as pd
+from operator import itemgetter
+from collections import Counter
+from itertools import islice
+
+# input arguments
+parser = argparse.ArgumentParser(description="this script is to count voting number")
+
+parser.add_argument('-vcf', '--multi_sample_vcf', type=str, help='The VCF file you want to count the voting number',  required=True)
+parser.add_argument('-dup', '--dup_list', type=str, help='Duplication list',  required=True)
+parser.add_argument('-sample', '--sample_name', type=str, help='which sample of quartet',  required=True)
+parser.add_argument('-prefix', '--prefix', type=str, help='Prefix of output file name',  required=True)
+
+args = parser.parse_args()
+multi_sample_vcf = args.multi_sample_vcf
+dup_list = args.dup_list
+prefix = args.prefix
+sample_name = args.sample_name
+
+vcf_header = '''##fileformat=VCFv4.2
+##fileDate=20191224
+##source=high_confidence_calls_intergration(choppy app)
+##reference=GRCh38.d1.vd1
+##INFO=<ID=DPCT,Number=1,Type=Float,Description="Percentage of detected votes">
+##INFO=<ID=VPCT,Number=1,Type=Float,Description="Percentage of consnesus votes">
+##FORMAT=<ID=GT,Number=1,Type=String,Description="Genotype">
+##contig=<ID=chr1,length=248956422>
+##contig=<ID=chr2,length=242193529>
+##contig=<ID=chr3,length=198295559>
+##contig=<ID=chr4,length=190214555>
+##contig=<ID=chr5,length=181538259>
+##contig=<ID=chr6,length=170805979>
+##contig=<ID=chr7,length=159345973>
+##contig=<ID=chr8,length=145138636>
+##contig=<ID=chr9,length=138394717>
+##contig=<ID=chr10,length=133797422>
+##contig=<ID=chr11,length=135086622>
+##contig=<ID=chr12,length=133275309>
+##contig=<ID=chr13,length=114364328>
+##contig=<ID=chr14,length=107043718>
+##contig=<ID=chr15,length=101991189>
+##contig=<ID=chr16,length=90338345>
+##contig=<ID=chr17,length=83257441>
+##contig=<ID=chr18,length=80373285>
+##contig=<ID=chr19,length=58617616>
+##contig=<ID=chr20,length=64444167>
+##contig=<ID=chr21,length=46709983>
+##contig=<ID=chr22,length=50818468>
+##contig=<ID=chrX,length=156040895>
+'''
+
+# read in duplication list
+dup = pd.read_table(dup_list,header=None)
+var_dup = dup[0].tolist()
+
+# output file
+file_name = prefix + '_annotated.vcf'
+outfile = open(file_name,'w')
+
+# write VCF
+outputcolumn = '#CHROM\tPOS\tID\tREF\tALT\tQUAL\tFILTER\tINFO\tFORMAT\tQuartet_DNA_BGI_SEQ2000_BGI_1_20180518_LCL5\tQuartet_DNA_BGI_SEQ2000_BGI_2_20180530_LCL5\tQuartet_DNA_BGI_SEQ2000_BGI_3_20180530_LCL5\tQuartet_DNA_BGI_SEQ2000_WGE_1_20190402_LCL5\tQuartet_DNA_BGI_SEQ2000_WGE_2_20190402_LCL5\tQuartet_DNA_BGI_SEQ500_BGI_1_20180328_LCL5 \tQuartet_DNA_BGI_SEQ500_BGI_2_20180328_LCL5\tQuartet_DNA_BGI_SEQ500_BGI_3_20180328_LCL5\tQuartet_DNA_ILM_Nova_ARD_1_20181108_LCL5\tQuartet_DNA_ILM_Nova_ARD_2_20181108_LCL5\tQuartet_DNA_ILM_Nova_ARD_3_20181108_LCL5\tQuartet_DNA_ILM_Nova_ARD_4_20190111_LCL5\tQuartet_DNA_ILM_Nova_ARD_5_20190111_LCL5\tQuartet_DNA_ILM_Nova_ARD_6_20190111_LCL5\tQuartet_DNA_ILM_Nova_BRG_1_20171024_LCL5\tQuartet_DNA_ILM_Nova_BRG_1_20180930_LCL5\tQuartet_DNA_ILM_Nova_BRG_2_20180930_LCL5\tQuartet_DNA_ILM_Nova_BRG_3_20180930_LCL5\tQuartet_DNA_ILM_Nova_GAC_1_20171025_LCL5\tQuartet_DNA_ILM_Nova_NVG_1_20171024_LCL5\tQuartet_DNA_ILM_Nova_WUX_1_20171024_LCL5\tQuartet_DNA_ILM_XTen_ARD_1_20170403_LCL5\tQuartet_DNA_ILM_XTen_ARD_2_20170403_LCL5\tQuartet_DNA_ILM_XTen_ARD_3_20170403_LCL5\tQuartet_DNA_ILM_XTen_NVG_1_20170329_LCL5\tQuartet_DNA_ILM_XTen_NVG_2_20170329_LCL5\tQuartet_DNA_ILM_XTen_NVG_3_20170329_LCL5\tQuartet_DNA_ILM_XTen_WUX_1_20170216_LCL5\tQuartet_DNA_ILM_XTen_WUX_2_20170216_LCL5\tQuartet_DNA_ILM_XTen_WUX_3_20170216_LCL5\tQuartet_DNA_ILM_XTen_WUX_4_20180703_LCL5\tQuartet_DNA_ILM_XTen_WUX_5_20180703_LCL5\tQuartet_DNA_ILM_XTen_WUX_6_20180703_LCL5' +'\t'+ sample_name+'_pcr'+'\t' + sample_name+'_pcr-free'+ '\t'+ sample_name +'_consensus' + '\t' + sample_name + '_consensus_alt_seq' +'\n'
+outfile.write(vcf_header)
+outfile.write(outputcolumn)
+
+#function
+
+def detected_percentage(strings):
+	strings = [x.replace('0/0','.') for x in strings]
+	gt = [x.split(':')[0] for x in strings]
+	percentage = round((33 - gt.count('.'))/33,4)
+	return(str(percentage))
+
+def vote_percentage(strings,consensus_call):
+	strings = [x.replace('.','0/0') for x in strings]
+	gt = [x.split(':')[0] for x in strings]
+	gt = list(map(gt_uniform,[i for i in gt]))
+	percentage = round(gt.count(consensus_call)/33,4)
+	return(str(percentage))
+
+def family_vote(strings,consensus_call):
+	pass
+
+def gt_uniform(strings):
+	uniformed_gt = ''
+	allele1 = strings.split('/')[0]
+	allele2 = strings.split('/')[1]
+	if int(allele1) > int(allele2):
+		uniformed_gt = allele2 + '/' + allele1
+	else:
+		uniformed_gt = allele1 + '/' + allele2
+	return uniformed_gt
+
+def decide_by_rep(strings):
+	consensus_rep = ''
+	mendelian = [x[-5:] for x in strings]
+	strings = [x.replace('.','0/0') for x in strings]
+	gt = [x.split(':')[0] for x in strings]
+	# modified gt turn 2/1 to 1/2
+	gt = list(map(gt_uniform,[i for i in gt]))
+	# mendelian consistent?
+	mendelian_dict = Counter(mendelian)
+	highest_mendelian = mendelian_dict.most_common(1)
+	candidate_mendelian = highest_mendelian[0][0]
+	freq_mendelian = highest_mendelian[0][1]
+	if (candidate_mendelian == '1:1:1') and (freq_mendelian >= 2):
+		gt_num_dict = Counter(gt)
+		highest_gt = gt_num_dict.most_common(1)
+		candidate_gt = highest_gt[0][0]
+		freq_gt = highest_gt[0][1]
+		if (candidate_gt != '0/0') and (freq_gt >= 2):
+			consensus_rep = candidate_gt
+		elif (candidate_gt == '0/0') and (freq_gt >= 2):
+			consensus_rep = '0/0'
+		else:
+			consensus_rep = 'inconGT'
+	elif (candidate_mendelian == '.') and (freq_mendelian >= 2):
+		consensus_rep = 'noInfo'
+	else:
+		consensus_rep = 'inconMen'
+	return consensus_rep
+
+
+def main():
+	for line in fileinput.input(multi_sample_vcf):
+		headline = re.match('^\#',line)
+		if headline is not None:
+			pass
+		else:
+			line = line.strip()
+			strings = line.split('\t')
+			variant_id = '_'.join([strings[0],strings[1]])
+			# check if the variants location is duplicated
+			if variant_id in var_dup:
+				strings[6] = 'dupVar'
+				outLine = '\t'.join(strings) + '\t' + '.' +'\t' + '.' + '\t' + 'dupVar' + '\t' + '.' +'\n'
+				outfile.write(outLine)
+			else:
+				# pre-define
+				pcr_consensus = ''
+				pcr_free_consensus = ''
+				consensus_call = ''
+				consensus_alt_seq = '.'
+				# pcr
+				pcr = itemgetter(*[9,10,11,12,14,15,16,23,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41])(strings)
+				SEQ2000 = decide_by_rep(pcr[0:3])
+				SEQ500 = decide_by_rep(pcr[4:7])
+				Nova = decide_by_rep(pcr[7:11])
+				XTen_ARD = decide_by_rep(pcr[11:14])
+				XTen_NVG = decide_by_rep(pcr[14:17])
+				XTen_WUX_1 = decide_by_rep(pcr[17:20])
+				XTen_WUX_2 = decide_by_rep(pcr[20:23])
+				sequence_site = [SEQ2000,SEQ500,Nova,XTen_ARD,XTen_NVG,XTen_WUX_1,XTen_WUX_2]
+				sequence_dict = Counter(sequence_site)
+				highest_sequence = sequence_dict.most_common(1)
+				candidate_sequence = highest_sequence[0][0]
+				freq_sequence = highest_sequence[0][1]
+				if freq_sequence > 4:
+					pcr_consensus = candidate_sequence
+				else:
+					pcr_consensus = 'inconSequenceSite'
+				# pcr-free
+				pcr_free = itemgetter(*[13,17,18,19,20,21,22,24,25,26])(strings)
+				#SEQ2000 = decide_by_rep(pcr_free[0])
+				Nova_ARD_1 = decide_by_rep(pcr_free[1:4])
+				Nova_ARD_2 = decide_by_rep(pcr_free[4:7])
+				Nova_BRG = decide_by_rep(pcr_free[7:10])
+				sequence_site = [SEQ2000,Nova_ARD_1,Nova_ARD_2,Nova_BRG]
+				highest_sequence = sequence_dict.most_common(1)
+				candidate_sequence = highest_sequence[0][0]
+				freq_sequence = highest_sequence[0][1]
+				if freq_sequence > 2:
+					pcr_free_consensus = candidate_sequence
+				else:
+					pcr_free_consensus = 'inconSequenceSite'
+				# pcr and pcr-free
+				tag = ['inconGT','noInfo','inconMen','inconSequenceSite']
+				if (pcr_consensus == pcr_free_consensus) and (pcr_consensus not in tag) and (pcr_consensus != '0/0'):
+					consensus_call = pcr_consensus
+					VPCT = vote_percentage(strings[9:],consensus_call)
+					strings[7] = 'VPCT=' + VPCT
+					DPCT = detected_percentage(strings[9:])
+					strings[7] = strings[7] + ';DPCT=' + DPCT
+					# Delete multiple alternative genotype to necessary expression
+					strings[6] = 'reproducible'
+					alt = strings[4]
+					alt_gt = alt.split(',')
+					if len(alt_gt) > 1:
+						allele1 = consensus_call.split('/')[0]
+						allele2 = consensus_call.split('/')[1]
+						if allele1 == '0':
+							allele2_seq = alt_gt[int(allele2) - 1]
+							consensus_alt_seq = allele2_seq
+							consensus_call = '0/1'
+						else:
+							allele1_seq = alt_gt[int(allele1) - 1]
+							allele2_seq = alt_gt[int(allele2) - 1]
+							if int(allele1) > int(allele2):
+								consensus_alt_seq = allele2_seq + ',' + allele1_seq
+								consensus_call = '1/2'
+							elif int(allele1) < int(allele2):
+								consensus_alt_seq = allele1_seq + ',' + allele2_seq
+								consensus_call = '1/2'
+							else:
+								consensus_alt_seq = allele1_seq
+								consensus_call = '1/1'
+					else:
+						consensus_alt_seq = alt
+				elif (pcr_consensus in tag) and (pcr_free_consensus in tag):
+					consensus_call = 'filtered'
+					strings[6] = 'filtered'
+					DPCT = detected_percentage(strings[9:])
+					strings[7] = 'DPCT=' + DPCT
+				elif ((pcr_consensus == '0/0') or (pcr_consensus in tag)) and ((pcr_free_consensus not in tag) and (pcr_free_consensus != '0/0')):
+					consensus_call = 'pcr-free-speicifc'
+					strings[6] = 'pcr-free-speicifc'
+					DPCT = detected_percentage(strings[9:])
+					strings[7] = 'DPCT=' + DPCT
+				elif ((pcr_consensus != '0/0') or (pcr_consensus not in tag)) and ((pcr_free_consensus in tag) and (pcr_free_consensus == '0/0')):
+					consensus_call = 'pcr-speicifc'
+					strings[6] = 'pcr-speicifc'
+					DPCT = detected_percentage(strings[9:])
+					strings[7] = 'DPCT=' + DPCT
+				elif (pcr_consensus == '0/0') and (pcr_free_consensus == '0/0'):
+					consensus_call = 'confirm for parents'
+					strings[6] = 'confirm for parents'
+					DPCT = detected_percentage(strings[9:])
+					strings[7] = 'DPCT=' + DPCT
+				else:
+					consensus_call = 'filtered'
+					strings[6] = 'filtered'
+					DPCT = detected_percentage(strings[9:])
+					strings[7] = 'DPCT=' + DPCT
+				# output
+				outLine = '\t'.join(strings) + '\t' + pcr_consensus +'\t' + pcr_free_consensus + '\t' + consensus_call + '\t' + consensus_alt_seq + '\n'
+				outfile.write(outLine)
+
+
+if __name__ == '__main__':
+	main()
+
+
+
+
+
+
+
+
+
+
+
+

codescripts/oneClass.py

@@ -0,0 +1,109 @@
+# import modules
+import numpy as np
+import pandas as pd
+from sklearn import svm
+from sklearn import preprocessing
+import sys, argparse, os
+from vcf2bed import position_to_bed,padding_region
+
+
+
+parser = argparse.ArgumentParser(description="this script is to preform one calss svm on each chromosome")
+
+parser.add_argument('-train', '--trainDataset', type=str, help='training dataset generated from extracting vcf information part, with mutaitons supported by callsets',  required=True)
+parser.add_argument('-test', '--testDataset', type=str, help='testing dataset generated from extracting vcf information part, with mutaitons not called by all callsets',  required=True)
+parser.add_argument('-name', '--sampleName', type=str, help='sample name for output file name',  required=True)
+
+args = parser.parse_args()
+
+# Rename input:
+train_input = args.trainDataset
+test_input = args.testDataset
+sample_name = args.sampleName
+
+# default columns, which will be included in the included in the calssifier
+chromosome = ['chr1','chr2','chr3','chr4','chr5','chr6','chr7','chr8','chr9','chr10','chr11','chr12','chr13','chr14','chr15' ,'chr16','chr17','chr18','chr19','chr20','chr21','chr22','chrX','chrY']
+feature_heter_cols = ['AltDP','BaseQRankSum','DB','DP','FS','GQ','MQ','MQRankSum','QD','ReadPosRankSum','RefDP','SOR','af']
+feature_homo_cols = ['AltDP','DB','DP','FS','GQ','MQ','QD','RefDP','SOR','af']
+
+
+# import datasets sepearate the records with or without BaseQRankSum annotation, etc.
+def load_dat(dat_file_name):
+    dat = pd.read_table(dat_file_name)
+    dat['DB'] = dat['DB'].fillna(0)
+    dat = dat[dat['DP'] != 0]
+    dat['af'] = dat['AltDP']/(dat['AltDP'] + dat['RefDP'])
+    homo_rows = dat[dat['BaseQRankSum'].isnull()]
+    heter_rows = dat[dat['BaseQRankSum'].notnull()]
+    return homo_rows,heter_rows
+
+
+train_homo,train_heter = load_dat(train_input)
+test_homo,test_heter = load_dat(test_input)
+clf = svm.OneClassSVM(nu=0.05,kernel='rbf', gamma='auto_deprecated',cache_size=500)
+
+def prepare_dat(train_dat,test_dat,feature_cols,chromo):
+	chr_train = train_dat[train_dat['chromo'] == chromo]
+	chr_test = test_dat[test_dat['chromo'] == chromo]
+
+	train_dat = chr_train.loc[:,feature_cols]
+	test_dat = chr_test.loc[:,feature_cols]
+	train_dat_scaled = preprocessing.scale(train_dat)
+	test_dat_scaled = preprocessing.scale(test_dat)
+	return chr_test,train_dat_scaled,test_dat_scaled
+
+def oneclass(X_train,X_test,chr_test):
+	clf.fit(X_train)
+	y_pred_test = clf.predict(X_test)
+	test_true_dat = chr_test[y_pred_test == 1]
+	test_false_dat = chr_test[y_pred_test == -1]
+	return test_true_dat,test_false_dat
+
+predicted_true = pd.DataFrame(columns=train_homo.columns)
+predicted_false = pd.DataFrame(columns=train_homo.columns)
+
+for chromo in chromosome:
+	# homo datasets
+	chr_test_homo,X_train_homo,X_test_homo = prepare_dat(train_homo,test_homo,feature_homo_cols,chromo)
+	test_true_homo,test_false_homo = oneclass(X_train_homo,X_test_homo,chr_test_homo)
+	predicted_true = predicted_true.append(test_true_homo)
+	predicted_false = predicted_false.append(test_false_homo)
+	# heter datasets
+	chr_test_heter,X_train_heter,X_test_heter = prepare_dat(train_heter,test_heter,feature_heter_cols,chromo)
+	test_true_heter,test_false_heter = oneclass(X_train_heter,X_test_heter,chr_test_heter)
+	predicted_true = predicted_true.append(test_true_heter)
+	predicted_false = predicted_false.append(test_false_heter)
+
+predicted_true_filename = sample_name + '_predicted_true.txt'
+predicted_false_filename = sample_name + '_predicted_false.txt'
+
+predicted_true.to_csv(predicted_true_filename,sep='\t',index=False)
+predicted_false.to_csv(predicted_false_filename,sep='\t',index=False)
+
+# output the bed file and padding bed region 50bp
+
+predicted_true_bed_filename = sample_name + '_predicted_true.bed'
+predicted_false_bed_filename = sample_name + '_predicted_false.bed'
+padding_filename = sample_name + '_padding.bed'
+
+predicted_true_bed = open(predicted_true_bed_filename,'w')
+predicted_false_bed = open(predicted_false_bed_filename,'w')
+padding = open(padding_filename,'w')
+
+#
+for index,row in predicted_false.iterrows():
+	chromo,pos1,pos2 = position_to_bed(row['chromo'],row['pos'],row['ref'],row['alt'])
+	outline_pos = chromo + '\t' + str(pos1) + '\t' + str(pos2) + '\n'
+	predicted_false_bed.write(outline_pos)
+	chromo,pad_pos1,pad_pos2,pad_pos3,pad_pos4 = padding_region(chromo,pos1,pos2,50)
+	outline_pad_1 = chromo + '\t' + str(pad_pos1) + '\t' + str(pad_pos2) + '\n'
+	outline_pad_2 = chromo + '\t' + str(pad_pos3) + '\t' + str(pad_pos4) + '\n'
+	padding.write(outline_pad_1)
+	padding.write(outline_pad_2)
+
+for index,row in predicted_true.iterrows():
+	chromo,pos1,pos2 = position_to_bed(row['chromo'],row['pos'],row['ref'],row['alt'])
+	outline_pos = chromo + '\t' + str(pos1) + '\t' + str(pos2) + '\n'
+	predicted_true_bed.write(outline_pos)
+
+

codescripts/reformVCF.py

@@ -0,0 +1,144 @@
+# import modules
+import sys, argparse, os
+import fileinput
+import re
+
+parser = argparse.ArgumentParser(description="This script is to split samples in VCF files and rewrite to the right style")
+
+parser.add_argument('-vcf', '--familyVCF', type=str, help='VCF with sister and mendelian infomation',  required=True)
+parser.add_argument('-name', '--familyName', type=str, help='Family name of the VCF file',  required=True)
+
+args = parser.parse_args()
+
+# Rename input:
+inputFile = args.familyVCF
+family_name = args.familyName
+
+# output filename
+LCL5_name = family_name + '.LCL5.vcf'
+LCL5file = open(LCL5_name,'w')
+LCL6_name = family_name + '.LCL6.vcf'
+LCL6file = open(LCL6_name,'w')
+LCL7_name = family_name + '.LCL7.vcf'
+LCL7file = open(LCL7_name,'w')
+LCL8_name = family_name + '.LCL8.vcf'
+LCL8file = open(LCL8_name,'w')
+family_filename = family_name + '.vcf'
+familyfile = open(family_filename,'w')
+
+# default columns, which will be included in the included in the calssifier
+vcfheader = '''##fileformat=VCFv4.2
+##FILTER=<ID=PASS,Description="the same genotype between twin sister and mendelian consistent in 578 and 678">
+##FORMAT=<ID=GT,Number=1,Type=String,Description="Genotype">
+##FORMAT=<ID=TWINS,Number=0,Type=Flag,Description="0 for sister consistent, 1 for sister inconsistent">
+##FORMAT=<ID=TRIO5,Number=0,Type=Flag,Description="0 for trio consistent, 1 for trio inconsistent">
+##FORMAT=<ID=TRIO6,Number=0,Type=Flag,Description="0 for trio consistent, 1 for trio inconsistent">
+##contig=<ID=chr1,length=248956422>
+##contig=<ID=chr2,length=242193529>
+##contig=<ID=chr3,length=198295559>
+##contig=<ID=chr4,length=190214555>
+##contig=<ID=chr5,length=181538259>
+##contig=<ID=chr6,length=170805979>
+##contig=<ID=chr7,length=159345973>
+##contig=<ID=chr8,length=145138636>
+##contig=<ID=chr9,length=138394717>
+##contig=<ID=chr10,length=133797422>
+##contig=<ID=chr11,length=135086622>
+##contig=<ID=chr12,length=133275309>
+##contig=<ID=chr13,length=114364328>
+##contig=<ID=chr14,length=107043718>
+##contig=<ID=chr15,length=101991189>
+##contig=<ID=chr16,length=90338345>
+##contig=<ID=chr17,length=83257441>
+##contig=<ID=chr18,length=80373285>
+##contig=<ID=chr19,length=58617616>
+##contig=<ID=chr20,length=64444167>
+##contig=<ID=chr21,length=46709983>
+##contig=<ID=chr22,length=50818468>
+##contig=<ID=chrX,length=156040895>
+'''
+# write VCF
+LCL5colname = '#CHROM\tPOS\tID\tREF\tALT\tQUAL\tFILTER\tINFO\tFORMAT\t'+family_name+'_LCL5'+'\n'
+LCL5file.write(vcfheader)
+LCL5file.write(LCL5colname)
+
+LCL6colname = '#CHROM\tPOS\tID\tREF\tALT\tQUAL\tFILTER\tINFO\tFORMAT\t'+family_name+'_LCL6'+'\n'
+LCL6file.write(vcfheader)
+LCL6file.write(LCL6colname)
+
+LCL7colname = '#CHROM\tPOS\tID\tREF\tALT\tQUAL\tFILTER\tINFO\tFORMAT\t'+family_name+'_LCL7'+'\n'
+LCL7file.write(vcfheader)
+LCL7file.write(LCL7colname)
+
+LCL8colname = '#CHROM\tPOS\tID\tREF\tALT\tQUAL\tFILTER\tINFO\tFORMAT\t'+family_name+'_LCL8'+'\n'
+LCL8file.write(vcfheader)
+LCL8file.write(LCL8colname)
+
+familycolname = '#CHROM\tPOS\tID\tREF\tALT\tQUAL\tFILTER\tINFO\tFORMAT\t'+'LCL5\t'+'LCL6\t'+'LCL7\t'+'LCL8'+'\n'
+familyfile.write(vcfheader)
+familyfile.write(familycolname)
+
+# reform VCF
+def process(oneLine):
+	line = oneLine.rstrip()
+	strings = line.strip().split('\t')
+	# replace .
+	# LCL5 uniq
+	if strings[11] == '.':
+		strings[11] = '0/0'
+		strings[9] = strings[12]
+		strings[10] = strings[13]
+	else:
+		pass
+	# LCL6 uniq
+	if strings[14] == '.':
+		strings[14] = '0/0'
+		strings[12] = strings[9]
+		strings[13] = strings[10]
+	else:
+		pass
+	# sister
+	if strings[11] == strings[14]:
+		add_format = ":1"
+	else:
+		add_format = ":0"
+	# trioLCL5
+	if strings[15] == 'MD=1':
+		add_format = add_format + ":1"
+	else:
+		add_format = add_format + ":0"
+	# trioLCL6
+	if strings[7] == 'MD=1':
+		add_format = add_format + ":1"
+	else:
+		add_format = add_format + ":0"
+	# filter
+	if (strings[11] == strings[14]) and (strings[15] == 'MD=1') and (strings[7] == 'MD=1'):
+		strings[6] = 'PASS'
+	else:
+		strings[6] = '.'
+	# output LCL5
+	LCL5outLine = strings[0]+'\t'+strings[1]+'\t'+strings[2]+'\t'+strings[3]+'\t'+strings[4]+'\t'+'.'+'\t'+strings[6]+'\t'+ '.' +'\t'+ 'GT:TWINS:TRIO5:TRIO6' + '\t' + strings[14] + add_format + '\n'
+	LCL5file.write(LCL5outLine)
+	# output LCL6
+	LCL6outLine = strings[0]+'\t'+strings[1]+'\t'+strings[2]+'\t'+strings[3]+'\t'+strings[4]+'\t'+'.'+'\t'+strings[6]+'\t'+ '.' +'\t'+ 'GT:TWINS:TRIO5:TRIO6' + '\t' + strings[11] + add_format + '\n'
+	LCL6file.write(LCL6outLine)
+	# output LCL7
+	LCL7outLine = strings[0]+'\t'+strings[1]+'\t'+strings[2]+'\t'+strings[3]+'\t'+strings[4]+'\t'+'.'+'\t'+strings[6]+'\t'+ '.' +'\t'+ 'GT:TWINS:TRIO5:TRIO6' + '\t' + strings[10] + add_format + '\n'
+	LCL7file.write(LCL7outLine)
+	# output LCL8
+	LCL8outLine = strings[0]+'\t'+strings[1]+'\t'+strings[2]+'\t'+strings[3]+'\t'+strings[4]+'\t'+'.'+'\t'+strings[6]+'\t'+ '.' +'\t'+ 'GT:TWINS:TRIO5:TRIO6' + '\t' + strings[9] + add_format + '\n'
+	LCL8file.write(LCL8outLine)
+	# output family
+	familyoutLine = strings[0]+'\t'+strings[1]+'\t'+strings[2]+'\t'+strings[3]+'\t'+strings[4]+'\t'+ '.'+'\t'+strings[6]+'\t'+ '.' +'\t'+ 'GT:TWINS:TRIO5:TRIO6' + '\t' + strings[14] + add_format +'\t' + strings[11] + add_format + '\t' + strings[10] + add_format +'\t' + strings[9] + add_format + '\n'
+	familyfile.write(familyoutLine)
+
+
+for line in fileinput.input(inputFile):
+	m = re.match('^\#',line)
+	if m is not None:
+		pass
+	else:
+		process(line)
+
+

codescripts/select_small_variants_supported_by_all_callsets.py

@@ -0,0 +1,62 @@
+import sys,getopt
+import os
+import re
+import fileinput
+
+def usage():
+	print(
+		"""
+Usage: python select_small_variants_supported_by_all_callsets.py -i input_merged_vcf_file -o prefix
+
+This script selects SNPs and Indels supported by all callsets.
+
+Input:
+-i a merged vcf file
+
+Output:
+-o  a vcf file containd the selected SNPs and Indels
+		""")
+
+# select supported small variants
+def process(oneLine):
+	m = re.match('^\#',oneLine)
+	if m is not None:
+		outVCF.write(oneLine)
+		OUTname.write(oneLine)
+	else:
+		line = oneLine.rstrip()
+		strings = line.strip().split('\t')
+		gt = [i.split(':', 1)[0] for i in strings[9:len(strings)]]
+		if all(e == gt[0] for e in gt) and (gt[0] != '.'):
+			# output the record to vcf
+			outVCF.write(oneLine)
+		else:
+			OUTname.write(oneLine)
+
+
+opts,args = getopt.getopt(sys.argv[1:],"hi:o:")
+for op,value in opts:
+	if op == "-i":
+		inputFile=value
+	elif op == "-o":
+		prefix=value
+	elif op == "-h":
+		usage()
+		sys.exit()
+
+if len(sys.argv[1:]) < 3:
+	usage()
+	sys.exit()
+
+VCFname = prefix + '.vcf'
+OUTname = prefix + '_outlier.vcf'
+
+outVCF = open(VCFname,'w')
+OUTname = open(OUTname,'w')
+
+for line in fileinput.input(inputFile):
+	process(line)
+
+outVCF.close()
+OUTname.close()
+

codescripts/vcf2bed.py

@@ -0,0 +1,36 @@
+import re
+
+def position_to_bed(chromo,pos,ref,alt):
+    # snv
+    # Start cooridinate BED = start coordinate VCF - 1
+    # End cooridinate BED = start coordinate VCF
+
+    if len(ref) == 1 and len(alt) == 1:
+        StartPos = int(pos) -1
+        EndPos = int(pos)
+
+    # deletions
+    # Start cooridinate BED = start coordinate VCF - 1
+    # End cooridinate BED = start coordinate VCF + (reference length - alternate length)
+
+    elif len(ref) > 1 and len(alt) == 1:
+        StartPos = int(pos) - 1
+        EndPos = int(pos) + (len(ref) - 1)
+
+    #insertions
+    # For insertions:
+    # Start cooridinate BED = start coordinate VCF - 1
+    # End cooridinate BED = start coordinate VCF + (alternate length - reference length)
+
+    else:
+        StartPos = int(pos) - 1
+        EndPos = int(pos) + (len(alt) - 1)
+
+    return chromo,StartPos,EndPos
+
+def padding_region(chromo,pos1,pos2,padding):
+    StartPos1 = pos1 - padding
+    EndPos1 = pos1
+    StartPos2 = pos2
+    EndPos2 = pos2 + padding
+    return chromo,StartPos1,EndPos1,StartPos2,EndPos2

family.tsv

@@ -0,0 +1 @@
+#LCL5vcf	LCL6vcf	LCL7vcf	LCL8vcf	LCL5name	LCL6name	LCL7name	LCL8name	familyname

inputs

@@ -0,0 +1,29 @@
+{
+  "{{ project_name }}.LCL7merge.docker": "registry-vpc.cn-shanghai.aliyuncs.com/pgx-docker-registry/rtg-tools:latest",
+  "{{ project_name }}.fasta": "GRCh38.d1.vd1.fa",
+  "{{ project_name }}.LCL6familyzipIndex.docker": "registry-vpc.cn-shanghai.aliyuncs.com/pgx-docker-registry/rtg-tools:latest",
+  "{{ project_name }}.LCL5VCFrename.docker": "registry-vpc.cn-shanghai.aliyuncs.com/pgx-docker-registry/rtg-tools:latest",
+  "{{ project_name }}.LCL6mendelian.docker": "registry-vpc.cn-shanghai.aliyuncs.com/pgx-docker-registry/vbt:v1.1",
+  "{{ project_name }}.mergeSister.docker": "registry-vpc.cn-shanghai.aliyuncs.com/pgx-docker-registry/rtg-tools:latest",
+  "{{ project_name }}.LCL5mendelian.docker": "registry-vpc.cn-shanghai.aliyuncs.com/pgx-docker-registry/vbt:v1.1",
+  "{{ project_name }}.disk_size": "150",
+  "{{ project_name }}.inputSamplesFile": "{{ inputSamplesFile }}",
+  "{{ project_name }}.LCL6merge.docker": "registry-vpc.cn-shanghai.aliyuncs.com/pgx-docker-registry/rtg-tools:latest",
+  "{{ project_name }}.LCL6variantsNorm.docker": "registry-vpc.cn-shanghai.aliyuncs.com/pgx-docker-registry/bcftools:v1.9",
+  "{{ project_name }}.LCL6zipIndex.docker": "registry-vpc.cn-shanghai.aliyuncs.com/pgx-docker-registry/rtg-tools:latest",
+  "{{ project_name }}.LCL7familyzipIndex.docker": "registry-vpc.cn-shanghai.aliyuncs.com/pgx-docker-registry/rtg-tools:latest",
+  "{{ project_name }}.LCL5familyzipIndex.docker": "registry-vpc.cn-shanghai.aliyuncs.com/pgx-docker-registry/rtg-tools:latest",
+  "{{ project_name }}.LCL6VCFrename.docker": "registry-vpc.cn-shanghai.aliyuncs.com/pgx-docker-registry/rtg-tools:latest",
+  "{{ project_name }}.LCL5merge.docker": "registry-vpc.cn-shanghai.aliyuncs.com/pgx-docker-registry/rtg-tools:latest",
+  "{{ project_name }}.reformVCF.docker": "registry-vpc.cn-shanghai.aliyuncs.com/pgx-docker-registry/high_confidence_call:v1.1",
+  "{{ project_name }}.LCL5zipIndex.docker": "registry-vpc.cn-shanghai.aliyuncs.com/pgx-docker-registry/rtg-tools:latest",
+  "{{ project_name }}.cluster_config": "OnDemand bcs.a2.xlarge img-ubuntu-vpc",
+  "{{ project_name }}.LCL8familyzipIndex.docker": "registry-vpc.cn-shanghai.aliyuncs.com/pgx-docker-registry/rtg-tools:latest",
+  "{{ project_name }}.LCL7variantsNorm.docker": "registry-vpc.cn-shanghai.aliyuncs.com/pgx-docker-registry/bcftools:v1.9",
+  "{{ project_name }}.LCL8merge.docker": "registry-vpc.cn-shanghai.aliyuncs.com/pgx-docker-registry/rtg-tools:latest",
+  "{{ project_name }}.LCL5variantsNorm.docker": "registry-vpc.cn-shanghai.aliyuncs.com/pgx-docker-registry/bcftools:v1.9",
+  "{{ project_name }}.LCL8variantsNorm.docker": "registry-vpc.cn-shanghai.aliyuncs.com/pgx-docker-registry/bcftools:v1.9",
+  "{{ project_name }}.ref_dir": "oss://chinese-quartet/quartet-storage-data/reference_data/"
+}
+
+

tasks/VCFinfo.wdl

@@ -0,0 +1,23 @@
+task VCFinfo {
+	File merged_info
+	String sample
+	String docker
+	String cluster_config
+	String disk_size
+
+	command <<<
+
+
+
+	>>>
+
+	runtime {
+		docker:docker
+		cluster: cluster_config
+		systemDisk: "cloud_ssd 40"
+		dataDisk: "cloud_ssd " + disk_size + " /cromwell_root/"
+	}
+	output {
+		File extracted_info = ""
+	}
+}

tasks/VCFrename.wdl

@@ -0,0 +1,31 @@
+task VCFrename {
+	File trio_vcf_gz
+	File trio_vcf_idx
+	String mother_name
+	String father_name
+	String child_name
+	String family_name
+	String child
+	String docker
+	String cluster_config
+	String disk_size
+
+	command <<<
+		echo "MOTHER ${mother_name}.${child}
+		FATHER ${father_name}.${child}
+		CHILD ${child_name}" > rename.txt
+
+		rtg vcfannotate -i ${trio_vcf_gz} -o ${family_name}.${child}.rename.vcf.gz --relabel=rename.txt
+	>>>
+
+	runtime {
+		docker:docker
+		cluster: cluster_config
+		systemDisk: "cloud_ssd 40"
+		dataDisk: "cloud_ssd " + disk_size + " /cromwell_root/"
+	}
+	output {
+		File rename_trio_vcf_gz = "${family_name}.${child}.rename.vcf.gz"
+		File rename_trio_vcf_idx = "${family_name}.${child}.rename.vcf.gz.tbi"
+	}
+}

tasks/indelNorm.wdl

@@ -0,0 +1,30 @@
+task indelNorm {
+	File vcf
+	File ref_dir
+	String fasta
+	String sampleName
+	String docker
+	String cluster_config
+	String disk_size
+
+	command <<<
+
+		cat ${vcf} | grep '#' > header
+		cat ${vcf} | grep -v '#' > body
+		cat body | grep -w '^chr1\|^chr2\|^chr3\|^chr4\|^chr5\|^chr6\|^chr7\|^chr8\|^chr9\|^chr10\|^chr11\|^chr12\|^chr13\|^chr14\|^chr15\|^chr16\|^chr17\|^chr18\|^chr19\|^chr20\|^chr21\|^chr22\|^chrX' > body.filtered
+		cat header body.filtered > ${sampleName}.filtered.vcf
+
+		/opt/hall-lab/bcftools-1.9/bin/bcftools norm -f ${ref_dir}/${fasta} ${sampleName}.filtered.vcf > ${sampleName}.normed.vcf
+
+	>>>
+
+	runtime {
+		docker:docker
+		cluster: cluster_config
+		systemDisk: "cloud_ssd 40"
+		dataDisk: "cloud_ssd " + disk_size + " /cromwell_root/"
+	}
+	output {
+		File normed_vcf = "${sampleName}.normed.vcf"
+	}
+}

tasks/mendelian.wdl

@@ -0,0 +1,34 @@
+task mendelian {
+	File child_vcf
+	File LCL7_vcf
+	File LCL8_vcf
+	String LCL7_name
+	String LCL8_name
+	String child_name
+	File ref_dir
+	String fasta
+	String docker
+	String cluster_config
+	String disk_size
+
+	command <<<
+		export LD_LIBRARY_PATH=/opt/htslib-1.9
+		nt=$(nproc)
+		mkdir VBT
+
+		/opt/VBT-TrioAnalysis/vbt mendelian -ref ${ref_dir}/${fasta} -mother ${LCL8_vcf} -father ${LCL7_vcf} -child ${child_vcf} -outDir VBT -out-prefix ${child_name}.family --output-violation-regions -thread-count $nt
+
+		cat VBT/${child_name}.family_trio.vcf > ${child_name}.family.vcf
+	>>>
+
+	runtime {
+		docker:docker
+		cluster: cluster_config
+		systemDisk: "cloud_ssd 40"
+		dataDisk: "cloud_ssd " + disk_size + " /cromwell_root/"
+	}
+	output {
+		Array[File] vbt_mendelian = glob("VBT/*")
+		File trio_vcf = "${child_name}.family.vcf"
+	}
+}

tasks/merge.wdl

@@ -0,0 +1,27 @@
+task merge {
+	Array[File] family_vcf_gz
+	Array[File] family_vcf_idx
+	String sample
+	String docker
+	String cluster_config
+	String disk_size
+
+	command <<<
+
+		rtg vcfmerge --force-merge-all --no-gzip -o ${sample}.merged.vcf ${sep=" " family_vcf_gz}
+
+		cat ${sample}.merged.vcf | grep -v '#' | cut -f1-2 | sed s'/\t/_/g' | sort | uniq -c | sed 's/\s\+/\t/g' | awk '{ if ($1 != 1) { print } }' | cut -f3 > ${sample}.vcf_dup.txt
+
+	>>>
+
+	runtime {
+		docker:docker
+		cluster: cluster_config
+		systemDisk: "cloud_ssd 40"
+		dataDisk: "cloud_ssd " + disk_size + " /cromwell_root/"
+	}
+	output {
+		File merged_vcf = "${sample}.merged.vcf"
+		File vcf_dup = "${sample}.vcf_dup.txt"
+	}
+}

tasks/mergeSister.wdl

@@ -0,0 +1,34 @@
+task mergeSister {
+	File LCL5_trio_vcf_gz
+	File LCL5_trio_vcf_idx
+	File LCL6_trio_vcf_gz
+	File LCL6_trio_vcf_idx
+	String family_name
+	String docker
+	String cluster_config
+	String disk_size
+
+	command <<<
+		rtg vcfmerge -o LCL5.LCL6.merged.vcf.gz ${LCL5_trio_vcf_gz} ${LCL6_trio_vcf_gz}
+
+		rtg vcfmerge -o LCL6.LCL5.merged.vcf.gz ${LCL6_trio_vcf_gz} ${LCL5_trio_vcf_gz}
+
+		zcat LCL5.LCL6.merged.vcf.gz | grep '##' > header
+		zcat LCL5.LCL6.merged.vcf.gz | grep -v '##' | cut -f8 > LCL5.mendelian
+		zcat LCL6.LCL5.merged.vcf.gz | grep -v '##' | paste - LCL5.mendelian > body
+
+		cat header body > ${family_name}.trio.info.vcf
+	>>>
+
+	runtime {
+		docker:docker
+		cluster: cluster_config
+		systemDisk: "cloud_ssd 40"
+		dataDisk: "cloud_ssd " + disk_size + " /cromwell_root/"
+	}
+
+	output {
+		File family_mendelian_info = "${family_name}.trio.info.vcf"
+	}
+
+}

tasks/mergeVCFInfo.wdl

@@ -0,0 +1,24 @@
+task mergeVCFInfo {
+	Array[File] vcf_gz
+	Array[File] vcf_idx
+	String sample
+	String docker
+	String cluster_config
+	String disk_size
+
+	command <<<
+
+		rtg vcfmerge --force-merge-all --no-gzip -o ${sample}.merged.info.vcf ${sep=" " vcf_gz}
+
+	>>>
+
+	runtime {
+		docker:docker
+		cluster: cluster_config
+		systemDisk: "cloud_ssd 40"
+		dataDisk: "cloud_ssd " + disk_size + " /cromwell_root/"
+	}
+	output {
+		File merged_info = "${sample}.merged.info.vcf"
+	}
+}

tasks/oneClass.wdl

@@ -0,0 +1,39 @@
+task oneClass {
+	File snv_train_vcf
+	File snv_test_vcf
+	File indel_train_vcf
+	File indel_test_vcf
+	String sampleName = basename(snv_train_vcf,".normed.snv.train.txt")
+	String docker
+	String cluster_config
+	String disk_size
+
+	command <<<
+
+	python /opt/oneClass.py -train ${snv_train_vcf} -test ${snv_test_vcf} -name ${sampleName}_snv
+
+	python /opt/oneClass.py -train ${indel_train_vcf} -test ${indel_test_vcf} -name ${sampleName}_indel
+
+	>>>
+
+	runtime {
+		docker:docker
+		cluster: cluster_config
+		systemDisk: "cloud_ssd 40"
+		dataDisk: "cloud_ssd " + disk_size + " /cromwell_root/"
+	}
+
+	output {
+		File snv_true_txt = "${sampleName}_snv_predicted_true.txt"
+		File snv_false_txt = "${sampleName}_snv_predicted_false.txt"
+		File snv_true_bed = "${sampleName}_snv_predicted_true.bed"
+		File snv_false_bed = "${sampleName}_snv_predicted_false.bed"
+		File snv_padding = "${sampleName}_snv_padding.bed"
+		File indel_true_txt = "${sampleName}_indel_predicted_true.txt"
+		File indel_false_txt = "${sampleName}_indel_predicted_false.txt"
+		File indel_true_bed = "${sampleName}_indel_predicted_true.bed"
+		File indel_false_bed = "${sampleName}_indel_predicted_false.bed"
+		File indel_padding = "${sampleName}_indel_padding.bed"
+	}
+}
+

tasks/reformVCF.wdl

@@ -0,0 +1,30 @@
+task reformVCF {
+	File family_mendelian_info
+	File family_name
+	String docker
+	String cluster_config
+	String disk_size
+
+	command <<<
+
+	python /opt/reformVCF.py -vcf ${family_mendelian_info} -name ${family_name}
+
+
+	>>>
+
+	runtime {
+		docker:docker
+		cluster: cluster_config
+		systemDisk: "cloud_ssd 40"
+		dataDisk: "cloud_ssd " + disk_size + " /cromwell_root/"
+	}
+
+	output {
+		File LCL5_family_info = "${family_name}.LCL5.vcf"
+		File LCL6_family_info = "${family_name}.LCL6.vcf"
+		File LCL7_family_info = "${family_name}.LCL7.vcf"
+		File LCL8_family_info = "${family_name}.LCL8.vcf"
+		File family_info = "${family_name}.vcf"
+	}
+}
+

tasks/sister.wdl

@@ -0,0 +1,35 @@
+task sister {
+	File LCL5_vcf
+	File LCL6_vcf
+	File ref_dir
+	String fasta
+	String family_name
+	String docker
+	String cluster_config
+	String disk_size
+
+	command <<<
+		export LD_LIBRARY_PATH=/opt/htslib-1.9
+
+		mkdir sister
+		/opt/VBT-TrioAnalysis/vbt varcomp -called ${LCL5_vcf} -base ${LCL6_vcf} -ref ${ref_dir}/${fasta} -outDir sister -filter none
+
+		mv sister/TPBase.vcf ${family_name}.sister.consistent.vcf
+		mv sister/FP.vcf ${family_name}.LCL5.uniq.vcf
+		mv sister/FN.vcf ${family_name}.LCL6.uniq.vcf
+		mv sister/log.txt ${family_name}.sister.vbt.log.txt
+	>>>
+
+	runtime {
+		docker:docker
+		cluster: cluster_config
+		systemDisk: "cloud_ssd 40"
+		dataDisk: "cloud_ssd " + disk_size + " /cromwell_root/"
+	}
+	output {
+		File sister_consistent_vcf = "${family_name}.sister.consistent.vcf"
+		File LCL5_uniq = "${family_name}.LCL5.uniq.vcf"
+		File LCL6_uniq = "${family_name}.LCL6.uniq.vcf"
+		File log = "${family_name}.sister.vbt.log.txt"
+	}
+}

tasks/variantsNorm.wdl

@@ -0,0 +1,30 @@
+task variantsNorm {
+	File vcf
+	File ref_dir
+	String fasta
+	String sampleName
+	String docker
+	String cluster_config
+	String disk_size
+
+	command <<<
+
+		cat ${vcf} | grep '#' > header
+		cat ${vcf} | grep -v '#' > body
+		cat body | grep -w '^chr1\|^chr2\|^chr3\|^chr4\|^chr5\|^chr6\|^chr7\|^chr8\|^chr9\|^chr10\|^chr11\|^chr12\|^chr13\|^chr14\|^chr15\|^chr16\|^chr17\|^chr18\|^chr19\|^chr20\|^chr21\|^chr22\|^chrX' > body.filtered
+		cat header body.filtered > ${sampleName}.filtered.vcf
+
+		/opt/hall-lab/bcftools-1.9/bin/bcftools norm -f ${ref_dir}/${fasta} ${sampleName}.filtered.vcf > ${sampleName}.normed.vcf
+
+	>>>
+
+	runtime {
+		docker:docker
+		cluster: cluster_config
+		systemDisk: "cloud_ssd 40"
+		dataDisk: "cloud_ssd " + disk_size + " /cromwell_root/"
+	}
+	output {
+		File normed_vcf = "${sampleName}.normed.vcf"
+	}
+}

tasks/votes.wdl

@@ -0,0 +1,25 @@
+task votes {
+	File merged_vcf
+	File vcf_dup
+	String sample
+	String prefix
+	String docker
+	String cluster_config
+	String disk_size
+
+	command <<<
+		python /opt/high_confidence_call_vote.py -vcf ${merged_vcf} -dup ${vcf_dup} -sample ${sample} -prefix ${prefix}
+		cat ${prefix}_annotated.vcf | cut -f1-9,45 | grep -v 'filtered' | grep -v 'confirm for parents' | grep -v 'pcr-free-speicifc' | grep -v 'pcr-speicifc' | grep -v 'dupVar' > ${prefix}_bechmarking_calls.vcf
+	>>>
+
+	runtime {
+		docker:docker
+		cluster: cluster_config
+		systemDisk: "cloud_ssd 40"
+		dataDisk: "cloud_ssd " + disk_size + " /cromwell_root/"
+	}
+	output {
+		File annotated_vcf = "${prefix}_annotated.vcf"
+		File benchmark_call = "${prefix}_bechmarking_calls.vcf"
+	}
+}

tasks/zipIndex.wdl

@@ -0,0 +1,25 @@
+task zipIndex {
+	File vcf
+	String sample
+	String family_name
+	String docker
+	String cluster_config
+	String disk_size
+
+	command <<<
+		rtg bgzip ${vcf} -c > ${family_name}.${sample}.vcf.gz
+		rtg index -f vcf ${family_name}.${sample}.vcf.gz
+
+	>>>
+
+	runtime {
+		docker:docker
+		cluster: cluster_config
+		systemDisk: "cloud_ssd 40"
+		dataDisk: "cloud_ssd " + disk_size + " /cromwell_root/"
+	}
+	output {
+		File vcf_gz = "${family_name}.${sample}.vcf.gz"
+		File vcf_idx = "${family_name}.${sample}.vcf.gz.tbi"
+	}
+}

workflow.wdl

@@ -0,0 +1,207 @@
+import "./tasks/variantsNorm.wdl" as variantsNorm
+import "./tasks/mendelian.wdl" as mendelian
+import "./tasks/zipIndex.wdl" as zipIndex
+import "./tasks/VCFrename.wdl" as VCFrename
+import "./tasks/mergeSister.wdl" as mergeSister
+import "./tasks/reformVCF.wdl" as reformVCF
+import "./tasks/merge.wdl" as merge
+
+workflow {{ project_name }} {
+	File inputSamplesFile
+	Array[Array[File]] inputSamples = read_tsv(inputSamplesFile)
+	File ref_dir
+	String fasta
+	String cluster_config
+	String disk_size
+
+	scatter (quartet in inputSamples){
+		call variantsNorm.variantsNorm as LCL5variantsNorm{
+			input:
+			vcf=quartet[0],
+			ref_dir=ref_dir,
+			fasta=fasta,
+			sampleName=quartet[4],
+			cluster_config=cluster_config,
+			disk_size=disk_size
+		}
+		call variantsNorm.variantsNorm as LCL6variantsNorm{
+			input:
+			vcf=quartet[1],
+			ref_dir=ref_dir,
+			fasta=fasta,
+			sampleName=quartet[5],
+			cluster_config=cluster_config,
+			disk_size=disk_size
+		}
+		call variantsNorm.variantsNorm as LCL7variantsNorm{
+			input:
+			vcf=quartet[2],
+			ref_dir=ref_dir,
+			fasta=fasta,
+			sampleName=quartet[6],
+			cluster_config=cluster_config,
+			disk_size=disk_size
+		}
+		call variantsNorm.variantsNorm as LCL8variantsNorm{
+			input:
+			vcf=quartet[3],
+			ref_dir=ref_dir,
+			fasta=fasta,
+			sampleName=quartet[7],
+			cluster_config=cluster_config,
+			disk_size=disk_size
+		}
+		call mendelian.mendelian as LCL5mendelian {
+			input:
+			child_vcf=LCL5variantsNorm.normed_vcf,
+			LCL7_vcf=LCL7variantsNorm.normed_vcf,
+			LCL8_vcf=LCL8variantsNorm.normed_vcf,
+			LCL7_name=quartet[6],
+			LCL8_name=quartet[7],
+			child_name=quartet[4],
+			ref_dir=ref_dir,
+			fasta=fasta,
+			cluster_config=cluster_config,
+			disk_size=disk_size
+		}
+		call mendelian.mendelian as LCL6mendelian {
+			input:
+			child_vcf=LCL6variantsNorm.normed_vcf,
+			LCL7_vcf=LCL7variantsNorm.normed_vcf,
+			LCL8_vcf=LCL8variantsNorm.normed_vcf,
+			LCL7_name=quartet[6],
+			LCL8_name=quartet[7],
+			child_name=quartet[5],
+			ref_dir=ref_dir,
+			fasta=fasta,
+			cluster_config=cluster_config,
+			disk_size=disk_size
+		}
+		call zipIndex.zipIndex as LCL5zipIndex {
+			input:
+			vcf=LCL5mendelian.trio_vcf,
+			sample="LCL5",
+			family_name=quartet[8],
+			cluster_config=cluster_config,
+			disk_size=disk_size
+		}
+		call zipIndex.zipIndex as LCL6zipIndex {
+			input:
+			vcf=LCL6mendelian.trio_vcf,
+			sample="LCL6",
+			family_name=quartet[8],
+			cluster_config=cluster_config,
+			disk_size=disk_size
+		}
+		call VCFrename.VCFrename as LCL5VCFrename {
+			input:
+			trio_vcf_gz=LCL5zipIndex.vcf_gz,
+			trio_vcf_idx=LCL5zipIndex.vcf_idx,
+			mother_name=quartet[7],
+			father_name=quartet[6],
+			child_name=quartet[4],
+			family_name=quartet[8],
+			child="LCL5",
+			cluster_config=cluster_config,
+			disk_size=disk_size
+		}
+		call VCFrename.VCFrename as LCL6VCFrename {
+			input:
+			trio_vcf_gz=LCL6zipIndex.vcf_gz,
+			trio_vcf_idx=LCL6zipIndex.vcf_idx,
+			mother_name=quartet[7],
+			father_name=quartet[6],
+			child_name=quartet[5],
+			family_name=quartet[8],
+			child="LCL6",
+			cluster_config=cluster_config,
+			disk_size=disk_size
+		}
+		call mergeSister.mergeSister as mergeSister {
+			input:
+			LCL5_trio_vcf_gz=LCL5VCFrename.rename_trio_vcf_gz,
+			LCL5_trio_vcf_idx=LCL5VCFrename.rename_trio_vcf_idx,
+			LCL6_trio_vcf_gz=LCL6VCFrename.rename_trio_vcf_gz,
+			LCL6_trio_vcf_idx=LCL6VCFrename.rename_trio_vcf_idx,
+			family_name=quartet[8],
+			cluster_config=cluster_config,
+			disk_size=disk_size
+		}
+		call reformVCF.reformVCF as reformVCF {
+			input:
+			family_mendelian_info=mergeSister.family_mendelian_info,
+			family_name=quartet[8],
+			cluster_config=cluster_config,
+			disk_size=disk_size
+		}
+		call zipIndex.zipIndex as LCL5familyzipIndex {
+			input:
+			vcf=reformVCF.LCL5_family_info,
+			sample='LCL5',
+			family_name=quartet[8],
+			cluster_config=cluster_config,
+			disk_size=disk_size
+		}
+		call zipIndex.zipIndex as LCL6familyzipIndex {
+			input:
+			vcf=reformVCF.LCL6_family_info,
+			sample='LCL6',
+			family_name=quartet[8],
+			cluster_config=cluster_config,
+			disk_size=disk_size
+		}
+		call zipIndex.zipIndex as LCL7familyzipIndex {
+			input:
+			vcf=reformVCF.LCL7_family_info,
+			sample='LCL7',
+			family_name=quartet[8],
+			cluster_config=cluster_config,
+			disk_size=disk_size
+		}
+		call zipIndex.zipIndex as LCL8familyzipIndex {
+			input:
+			vcf=reformVCF.LCL8_family_info,
+			sample='LCL8',
+			family_name=quartet[8],
+			cluster_config=cluster_config,
+			disk_size=disk_size
+		}
+	}
+	call merge.merge as LCL5merge {
+		input:
+		family_vcf_gz=LCL5familyzipIndex.vcf_gz,
+		family_vcf_idx=LCL5familyzipIndex.vcf_idx,
+		sample="LCL5",
+		cluster_config=cluster_config,
+		disk_size=disk_size
+	}
+
+	call merge.merge as LCL6merge {
+		input:
+		family_vcf_gz=LCL6familyzipIndex.vcf_gz,
+		family_vcf_idx=LCL6familyzipIndex.vcf_idx,
+		sample="LCL6",
+		cluster_config=cluster_config,
+		disk_size=disk_size
+	}
+
+	call merge.merge as LCL7merge {
+		input:
+		family_vcf_gz=LCL7familyzipIndex.vcf_gz,
+		family_vcf_idx=LCL7familyzipIndex.vcf_idx,
+		sample="LCL7",
+		cluster_config=cluster_config,
+		disk_size=disk_size
+	}
+
+	call merge.merge as LCL8merge {
+		input:
+		family_vcf_gz=LCL8familyzipIndex.vcf_gz,
+		family_vcf_idx=LCL8familyzipIndex.vcf_idx,
+		sample="LCL8",
+		cluster_config=cluster_config,
+		disk_size=disk_size
+	}
+
+}
+
